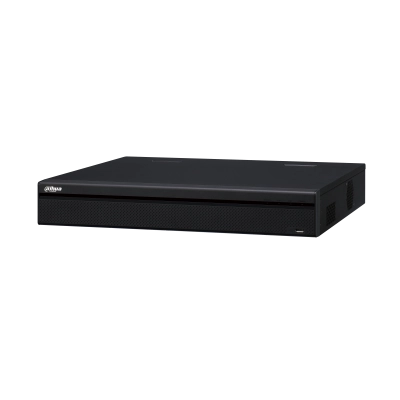

XVR5416L-X

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

8/16 Channel, BNC

HDCVI Camera

5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

8CH：8+4 Channel, each channel up to 6MP

16CH: 16+8 Channel, each channel up to 8MP

Audio In/Out

4/1, BNC

Two-way Talk

1 Mic In, 1 Mic Out, BNC

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate

Main stream: 5M-N(1~10fps), 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)

Sub stream: D1/CIF(1~15fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

8CH：1 HDMI, 1 VGA, 1 TV

16CH: 2 HDMI, 1 VGA, 1 TV

Resolution

8CH:HDMI 1:1920×1080, 1280×1024, 1280×720

16CH:HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

HDMI 2 / VGA: 1920×1080, 1280×1024, 1280×7201920×1080, 1280×1024, 1280×720

Multi-screen Display

8CH:

When IP extension mode not enabled: 1/4/8/9

When IP extension mode enabled: 1/4/8/9/16

16CH:

When IP extension mode not enabled: 1/4/8/9/16

When IP extension mode enabled: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

8/16

Relay Output

6

Playback and Backup

Playback

8CH: 1/4/8

16CH: 1/4/8/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

4 SATA Ports, up to 10TB capacity

eSATA

1 Port

Auxiliary Interface

USB

8CH: 3 USB Ports (3 USB 2.0)

16: 3 USB Ports (1 USB 2.0 , 2 USB 3.0)

RS232

1 port, for PC communication & Keyboard

RS485

1 Port, for PTZ Control

RS422

1 Port, for PTZ Control

Electrical

Power Supply

AC100V-240V, 50/60Hz

Power Consumption

(Without HDD)

<35W

Construction

Dimensions

1.5U, 440mm×417mm×76mm (17.3"x 16.4" x 3.0")

Net Weight

(Without HDD)

5kg (11.0lb)

Gross Weight

7kg (15.43lb)

Installation

Desktop installation/Rack-mounted

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
