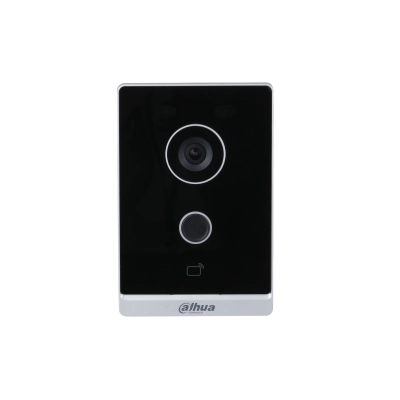

VTO2211G-WP

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Button Type

Mechanical

Interoperability

ONVIF

Network Protocol

SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.8'' 2MP CMOS high definition, low illumination/WDR/color/IR

Field of View

Horizontal: 125°; vertical: 72°; diagonal: 142°

WDR

120dB

Noise Reduction

3D noise reduction

Video Compression

H.264

Video Resolution

Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1

Video Frame Rate

PAL:25 fps NTSC:30 fps

Video Bit Rate

256K to 4M

Light Compensation

Auto IR

Day/Night

ICR auto switch

Audio Compression

G.711Mu; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression and cancellation/digital noise reduction

Audio Bit Rate

16KHz, 16Bit

Function

Communication Mode

Full digital

Unlock Mode

Card/app/indoor monitor unlock

Card Type

IC card

Auto Snapshot

Auto snapshot can only be enabled on indoor monitors

Leave Videos

Yes (Insert an SD card into the indoor monitor)

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Web Configuration

Yes

Performance

Card Reading Distance

3cm–5cm

Casing

PC+Acrylic

Capacity

Card

10,000

Port

RS-485

1

Electric Lock

1

Alarm Input

1

Alarm Output

1

Power Output

1

Exit Button

1

Door Status Detection

1

Lock Control

1, normally closed by default

Network

1 10M/100M network port

Alarm

Tamper

Yes

General

Color

Black plate & silvery frames

Power Supply

12V DC 1A
Standard PoE

Installation

Surface mount

Certifications

CE/FCC/UL

Accessory

Brackets and alarm ribbon cable

Dimensions

150 mm × 100 mm ×24.8 mm (5.91'' × 3.94'' × 0.98'')

Protection Grade

IP65 (Silicone sealant is needed, see the quick start guide.)

Operating Temperature

-30°C to +60°C (-22°F to +140°F)

Operating Humidity

10%RH–90%RH (non-condensing)

Operating Environment

Outdoor

Operating Altitude

Beneath 3000 m (9842.51 ft)

Power Consumption

Standby≤1W, working≤7W

Gross Weight

490 g (1.08 lb)
