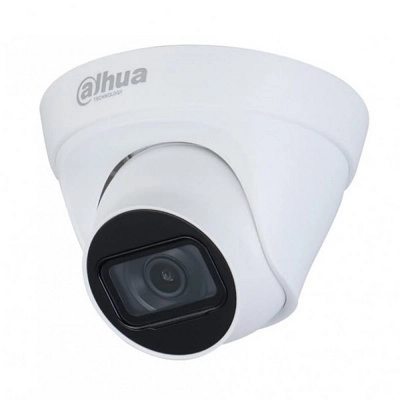

IPC-HDW1230TP-ZS-2812-S5

Անվտանգության համակարգեր

56500 ֏

2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition; Outputs max. 2MP (1920 × 1080p) @25/30 fps; H.265 codec, high compression rate, ultra-low bit rate; Built-in IR LED, max. IR distance: 40 m; ROI, SMART H.264+/H.265+, Rotation mode, DWDR, 3D DNR, HLC, BLC, Abnormality detection: Motion detection, video tampering, network; disconnection, IP conflict, illegal access; Supports max. 128 GB Micro SD card; 12V DC/PoE power support; IP67 protection

Standard:	TCP/IP
Sensor:	1/2.8 " Progressive Scan CMOS
Matrix size:	2.1 Mpx
Resolution:	1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p
Lens:	2.8 ... 12 mm - Motozoom
View angle:	101 ° ... 33.5 ° (manufacturer data) 97 ° ... 34 ° (our tests result)
Range of IR illumination:	40 m
RS-485 interface:
Memory card slot:	Micro SD memory cards up to 256GB support (possible local recording)
Image compression method:	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs / outputs:
Audio:
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast
WEB Server:	Built-in, Web Viewer
Max. number of on-line users:	6
ONVIF:	19.12
Mobile phones support:	Port no.: 37777 or access by a cloud (P2P) Android: Free application DMSS iOS (iPhone): Free application DMSS
Default IP address:	192.168.1.108
Default admin user / password:	admin / - The administrator password should be set at the first start
Web browser access ports:	80, 37777
PC client access ports:	37777
Mobile client access ports:	37777
Port ONVIF:	80
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
Main stream frame rate:	25 fps @ 1080p
Main features:	Motozoom lens - Controlling from browser, NVR or software D-WDR - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image ICR - Movable InfraRed filter BLC - configurable Back Light Compensation HLC - High Light Compensation (spot) Day/Night mode (color/b&w/auto) Motion Detection - max. 4 zones Privacy zones - max. 4 Mirror - Mirror image
Power supply:	PoE (802.3af), 12 V DC / 420 mA
Power consumption:	< 6.4 W @ PoE < 5 W @ 12 V DC
Housing:	Dome - Metal
Color:	White
Vandal-proof:
"Index of Protection":	IP67
Operation temp:	-30 °C ... 60 °C
Weight:	0.69 kg
Dimensions:	Ø 122 x 108 mm
Supported languages:	English, French, Spanish
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
