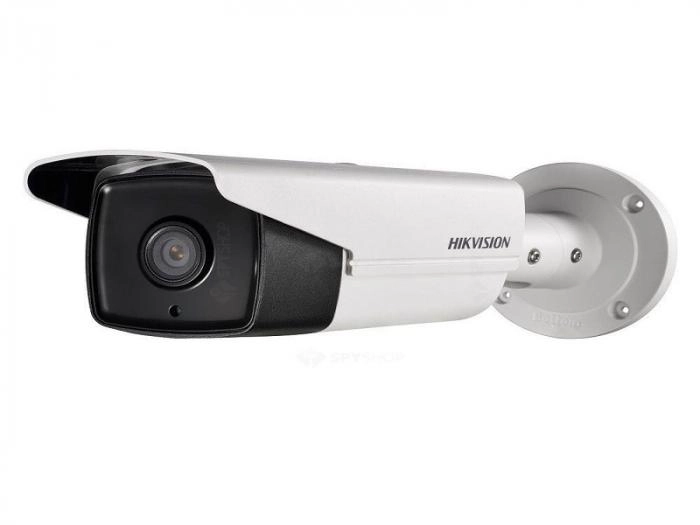

Hikvision IP Camera DS-2CD2T55FWD-I8, 5 MP, IR 80 m, 4 mm

Անվտանգության համակարգեր

0 ֏

DS-2CD2T55FWD-I5/I8

5 MP IR Fixed Bullet Network Camera

• Up to 5 megapixel high resolution

• Max. 2944 × 1656@20fps

• 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional

• H.265, H.265+, H.264+, H.264

•120dB Wide Dynamic Range

• 3D Digital Noise Reduction

• DC12V & PoE (802.3af)

• IR range: 50 m, 80m, optional

• Support on-board storage, up to 128 GB

• IP67

Camera
Image Sensor:		1/2.9" Progressive Scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON), 0 lux with IR
Shutter time:		1/3 s to 1/100,000 s
Slow shutter:		Support
Lens:		2.8 mm, horizontal field of view: 97° 4 mm, horizontal field of view: 78° 6 mm, horizontal field of view: 60° 8 mm, horizontal field of view: 39.5° 12 mm, horizontal field of view: 19°
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		120 dB
Digital noise reduction:		3D DNR
Focus:		Fixed

Max. Image Resolution:		2944 × 1656
Frame Rate:		50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream:		50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:		50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:		BLC/3D DNR/ROI/HLC
Image Settings:		Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI:		Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:		Day/Night/Auto/Schedule

Network
Network Storage:		microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols:		TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:		One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:		ONVIF (Profile S, Profile G), ISAPI

Interface
Communication Interface:		1 RJ45 10M / 100M Ethernet interface
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

Smart Feature-set
Behavior Analysis:		Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:		Cross a pre-defined virtual line
Intrusion Detection:		Enter and loiter in a pre-defined virtual region
Unattended Baggage:		Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:		Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:		Scene change detection
Recognition:		Face Detection

General
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:		12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:		-I5: 12 VDC ± 25%, 7 W; PoE, 9 W -I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
Weather Proof:		IP67
IR Range:		-I5: up to 50 m; -I8: up to 80 m
Dimensions:		Camera: Φ104.8 × 299.7 mm (Φ4.13″ × 11.8″) Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
Weight:		Camera: 1200 g (2.65 lb.)
