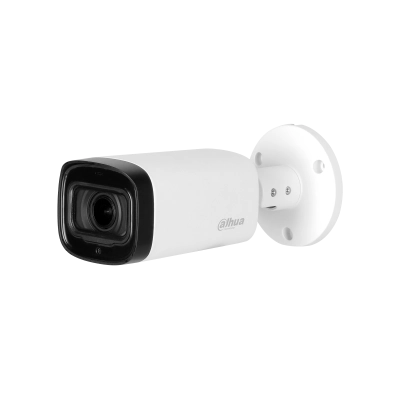

HAC-HFW1500R-Z-IRE6

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

2592 (H) × 1944 (V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Minimum Illumination

0.02Lux/F1.8, 30IRE, 0Lux IR on

Fill Light Working Distance

60 m (196.85 ft)

IR On/Off Control

Auto; manual

IR LED Number

4

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized-focal

Mount Type

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.8–F3.3

Angle of View

2.7 mm: 122° × 93° × 68° (diagonal x horizontal x vertical)
12 mm: 37° × 30° × 22° (diagonal x horizontal x vertical)

Iris Type

Fixed iris

Auto Focus

N/A

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7mm

67.0 m

(219.81 ft)

27.0 m

(88.58 ft)

13.0 m

(42.65 ft)

6.7 m

(21.98 ft)

12mm

198.0 m

(649.60 ft)

79.0 m

(259.18 ft)

39 m

(127.95 ft)

12.0 m

(39.37 ft)

Video

Frame Rate

CVI:
PAL: 5M@20fps; 4M@25fps; 1080P@25fps;
NTSC: 5M@20fps; 4M@30fps; 1080P@30fps
AHD: PAL: 5M@20fps; 4M@25fps; 1080P@25fps;
NTSC: 5M@20fps; 4M@30fps; 1080P@30fps
TVI: PAL: 5M@20fps; 4M@25fps; 1080P@25fps;
NTSC: 5M@20fps; 4M@30fps; 1080P@30fps
CVBS: PAL: 960H;
NTSC: 960H

Resolution

5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 ×1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/WDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 12W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F);<95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F);<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

209.9 mm × 90.4 mm × 90.4 mm (8.26" × 3.56" × 3.56")

Net Weight

570g (1.25lb)

Gross Weight

740g (1.63lb)
