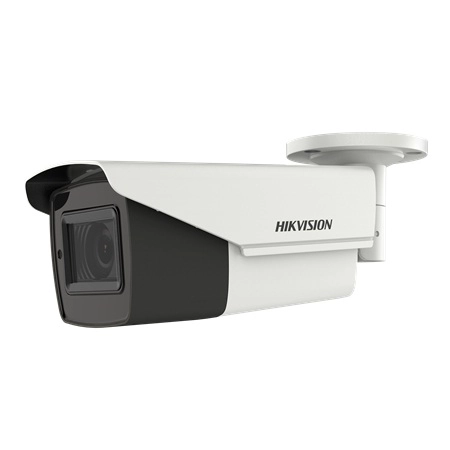

DS-2CE19D3T-IT3ZF

Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Video Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Resolution 1920 (H) ×1080 (V) Min. Illumination 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens 2.7 mm to 13.5 mm Horizontal Field of View 102°to 31° Lens Mount Ø 14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 120 dB Menu AGC High/Medium/Low D/N Mode Auto/Color/BW (Black and White) Image Mode STD/HIGH-SAT BLC (Backlight Compensation) Yes WDR Yes 3D DNR Level 1 to 9 Language English Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR Interface Video Output 1 HD analog output Switch Button TVI/AHD/CVI/CVBS General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 VDC ±25% -A: 24 VAC ±15%, 12 VDC ±20% Power Consumption Max. 7.7 W -A: Max. 9.7 W Protection Level IP67 Material Front cover: Metal Main body: Plastic Bracket: Metal IR Range Up to 70 m Dimensions 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") Weight Approx. 648 g (1.43 lb.) -A: Approx. 695 g (1.53 lb.
