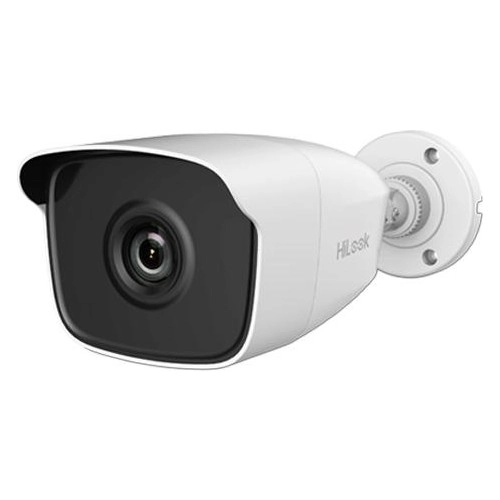

DS-2CE16H0T-IT3F

Camera Image Sensor 5 MP CMOS image sensor Effective Pixels 2560 (H) × 1944 (V) Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1°(6 mm), 41° (8 mm), 25.7° (12 mm) Lens Mount M12 Day & Night IR cut filter Angle Adjustment Pan: 0°to 360°; Tilt: 0°to 180°; Rotate: 0°to 360° Synchronization Internal synchronization Frame Rate PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps Menu AGC Support D/N Mode Auto/Color/BW (Black and White) White Balance ATW/MWB BLC Support DWDR (Digital Wide Dynamic Range) Support Language English Functions Brightness, Sharpness, DNR, Mirror, Smart IR Interface Video Output 1 HD analog output Switch Button TVI/AHD/CVI/CVBS General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Power Supply 12 VDC ±25% Power Consumption Max. 4.3 W Protection Level IP67 Material Front cover: Metal Main body: Plastic IR Range Up to 40 m Communication Up the coax, Protocol: HIKVISION-C (TVI output) Dimensions 86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.67") Weight Approx. 680 g (1.5 lb.
