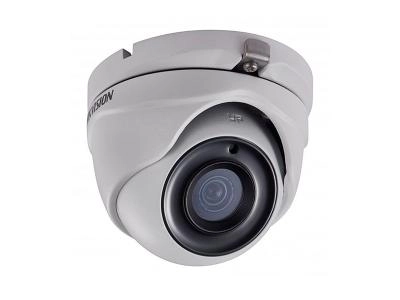

DS-2CE16D0T-IT3

Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1920(H)*1080(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional) Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.2°(3.6mm), 18.8°(6mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB General Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) Power Supply 12 VDC±15% Power Consumption Max. 4W Protection Level IP66 IR Range Up to 40m Dimensions 86.22×82.05×220.13mm(3.39”×3.23”×8.67”) Weight 430 g (0.95 lbs)
