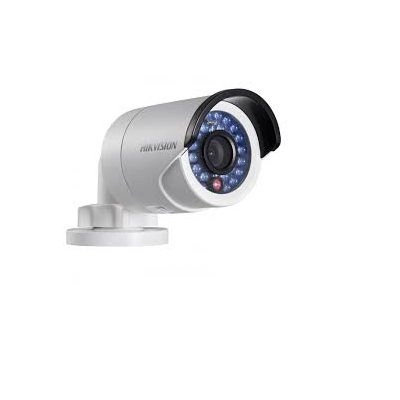

DS-2CE16C0T-IRP

Անվտանգության համակարգեր

10200 ֏

ICR + 20m IR Distance+ IP66

HD720p,1MP CMOS Sensor, 24 pcs IR LEDs, 20m IR, Outdoor IR Bullet, ICR, 0.01 Lux/F1.2, 12 VDC, Smart IR, IP66, Wide operating temperature range (-40°~60°), 2.8/3.6/6mm Lens

Տեխնիկական բնութագիր

Camera
Image Sensor1 MP CMOS
Max. Resolution1280 (H) × 720 (V)
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Typefixed focal lens, 2.8 mm, 3.6 mm and 6 mm optional
Focal Length & FOV70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
Lens MountM12

Illuminator
Supplement Light RangeUp to 20 m, supplement light type = IR

Frame Rate720p@25fps/720p@30fps
SNR> 62dB

Interface
Video Output1 HD analog output

General
Power12 VDC ± 15%, max. 4 W
DimensionΦ70×149.5 mm (Φ2.76”× 5.89”)
Approx. 300 g (0.66 lb)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
