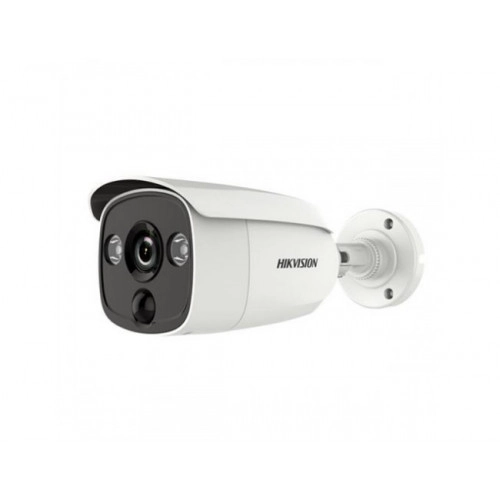

DS-2CE12D8T-PIRL

Camera Image Sensor 2 MP CMOS Signal System PAL/NTSC Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Resolution 1920 (H) × 1080 (V) Min. Illumination 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter Max. 16 times Lens 2.8 mm, 3.6 mm fixed lens Horizontal Field of View 103.5°(2.8 mm), 82.6°(3.6 mm) Lens Mount M12 Strobe Light Alarm Yes Day & Night ICR WDR (Wide Dynamic Range) ≥130 dB Angle Adjustment Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360° Menu White Light Alarm/Lighting/Off Image Mode STD/HIGH-SAT AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual AE (Auto Exposure) Mode WDR/BLC/HLC/Global Privacy Mask 4 programmable privacy masks Motion Detection 4 programmable motion areas Noise Reduction 3D DNR Language English Function Brightness, Sharpness, Mirror, Smart IR Interface Video Output 1 HD analog output General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing) Power Supply 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. Power Consumption Max. 4.5 W Ingress Protection IP67 Material Front cover: Metal Main body: Plastic IR Range Up to 30 m White Light Range Up to 20 m PIR Range Angle: 110°, Range:11 m Communication HIKVISION-C Dimensions 88.6 mm × 81.3 mm × 224.7 mm (3.49" × 3.20" × 8.85") Weight Approx. 430 g (0.95 lb.
