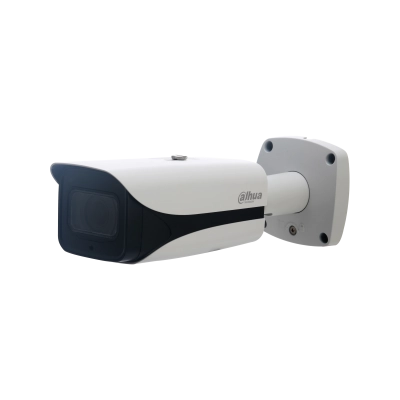

DH-IPC-HFW5831EP-ZE-2712

Camera

Image Sensor

1/2.5” 8Megapixel progressive scan CMOS

Effective Pixels

3840(H)x2160(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.05Lux/F1.4 (Color,1/3s,30IRE)

0.2Lux/F1.4 (Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m (164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

4

Lens

Lens Type

Motorized/ Auto Iris(DC)

Mount Type

Board-in

Focal Length

2.7mm~12mm

Max. Aperture

F1.4

Angle of View

H:110°~40° , V:58°~23°

Optical Zoom

4x

Focus Control

Motorized

Close Focus Distance

0.3m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

85m(280ft)

34m(112ft)

17m(56ft)

8.5m(28ft)

T

228m(748ft)

91m(299ft

46m(151ft)

23m(75ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4K(3840×2160)/ 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/

VGA(640×480)/ CIF(352×288/352×240)

Frame Rate

Main Stream: 4K(1~15fps)/3M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<12.95W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)

Net Weight

1.11Kg (2.44lb)

Gross Weight

1.51Kg (3.33lb)
