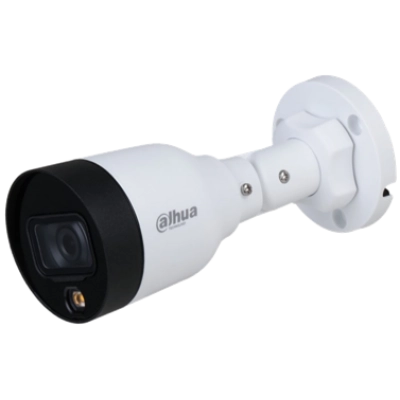

DH-IPC-HFW1239S1P-LED-S5

Camera

Image Sensor

1/2.7" 2Megapixel progressive CMOS

Effective Pixels

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux @F1.6

LED Distance

2.8 mm: 10 m (32.8ft)

3.6 mm: 15 m (49.2ft)

LED On/Off Control

Auto/Manual

LEDs Number

1

Pan/Tilt/Rotation Range

Horizontal: 0°–360°

Vertical: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

2.8 mm: F1.6

3.6 mm: F1.6

Field of View

2.8 mm: Pan 110° × Tilt 59° × Diagonal 132°

3.6 mm: Pan 91° × Tilt 48° × Diagonal 109°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.6 m (2.0 ft)

3.6 mm: 1.1 m (3.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

37.3 m
(122.4 ft)

14.9 m

(48.9 ft)

7.5 m

( 24.6 ft)

3.7 m
(12.1 ft)

3.6 mm

53.3 m

(174.9 ft)

21.3 m

(69.9 ft)

10.7 m
(35.1 ft)

5.3 m
(17.4 ft)

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main Stream:

1920 × 1080 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

1080P (1920×1080); 1.3MP (1280×960); 720P (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6400 Kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Light

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution.)

Mirror

Yes

Privacy Masking

4 areas

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; DDNS ;Multicast

Interoperability

ONVIF (Profile S); CGI; P2P; Genetec

User/Host

20

Edge Storage

FTP; Dahua Cloud

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 4.8W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67

Structure

Casing

Plastic

Dimensions

162.6 mm × Φ70 mm (6.4" × Φ2.8")

Net Weight

0.22 kg (0.4 lb)

Gross Weight

0.34 kg (0.7 lb)
