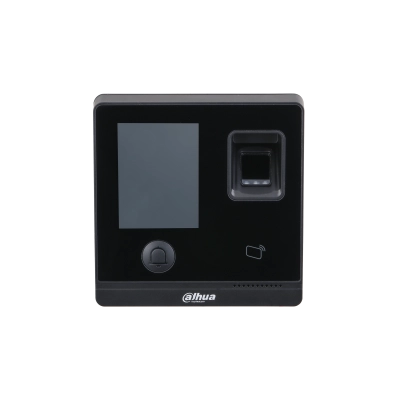

ASI1212F-D

Technical Specification

Models

ASI1212F

ASI1212F-D

System

Main Processor

Embedded processor

Network Protocol

IPv4, TCP, P2P

Button Type

Touch button

OSDP Protocol

Yes (only supported as a host)

Basic

Display

2.8 inch TFT touch screen

Screen Type

Capacitive screen

Resolution

240(H)×320(V)

Voice Prompt

Yes

Buzzer

Yes

Housing Material

PC+ABS

Function

Unlock Mode

Card/remote/password/fingerprint

Card Type

IC card

ID card

Period List

128

Holiday Period

128

Network Update

Yes

First Card Unlock

Yes

Remote Verification

Yes

Blacklist/Whitelist

Yes

Ads Broadcast

Support graphic advertisement play

Peripheral Card Reader

1 RS-485, 1 Wiegand

Group Combination

Card/remote/password/fingerprint

Web Configuration on PC

Yes

Web Configuration on Mobile

Yes

Performance

Card Reading Distance

1 cm–3 cm (0.03 ft–0.10 ft)

Fingerprint Sensor Type

Optical fingerprint

Fingerprint Verification Mode

1:N, 1:1

Fingerprint Comparison Time

1.5 s

Capacity

User

30,000

Fingerprint

3,000

Card

30,000

Password

30,000

Record

150,000

Port

RS-485

1

Wiegand

1 (input or output)

USB

1 USB2.0 port

Network

One 10/100 Mbps self-adaptive network port

Alarm Input

1

Alarm Output

1

Alarm Linkage

Yes

Unlock Button

1

Door Status Detection

1

Lock Control

1

Alarm

Anti-passback

Yes

Tamper

Yes

Duress

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

Duress Fingerprint

Yes

General

Power Supply

DC 12V 1A

Power Consumption

≤ 4.0W (standby), ≤ 6.0W (working)

Dimensions (H×W×D)

114.5 mm × 114.5 mm × 32.5 mm

(4.51”× 4.51”× 1.28”)

Packing Dimensions (H×W×D)

Packing box: 187 mm ×164 mm ×72 mm

(7.36"× 6.46"× 2.83")
Protective box: 585 mm×390 mm×360 mm

(23.03"× 15.35"× 14.17")

Operating Temperature

-10°C to +45°C (14°F to 113°F)

Operating Humidity

5%RH-90%RH (no condensation)

Operating Environment

Indoor

Gross Weight

415.0 g (0.91 lb)

Installation

Surface mount, flush mount, 86 case mount

Certifications

CE, FCC
