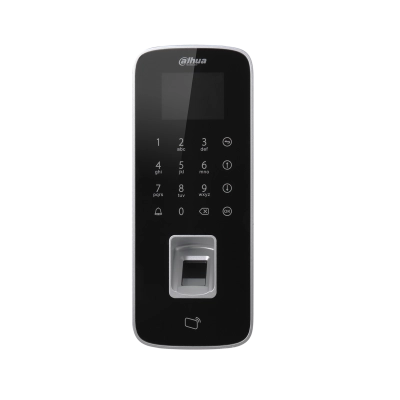

ASI1212D-D

Technical Specification

Model

ASI1212D

ASI1212D-D

System

Main Processor

32 Bit

Input/Output Ports

Input

Inputs (Door sensor x 1, Exit button x 1, Alarm input x 1)

Output

Output Relay x 3 (Door lockx 1, Bellx 1, Alarm x 1)

Card Read

Read Format

13.56MHz

125KHz

Read Range

1-3cm (max.)

Response Time

<0.1s

Fingerprint Read

Response Time

≤1.5s

Capacity

Card holders

30,000

Events

150,000

Fingerprint

3000

Function

Network

P2P, DHCP

Access control

Anti-passback, Multi-card unlock

User Management

General, VIP, Guest, Patrol, Black list, Duress

Alarm Function

Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Schedule Setting

Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period

Interface

To PC

RJ45(10/100M)

To Reader

Wiegand34/26, RS485

Genreal

RTC

Yes

Voice Prompt

Yes

Beep Tone

Buzzer

Power Supply

DC 9-15V/400mA

Operating Temperature

-10°C to +55°C

Working Humidity

10%RH–90%RH (no-condensation)

Dimension(W×D×H)

83.0mm×210.0mm×33.0mm

Weight

0.44kg

Working Environment

Indoor
